SQL
Nested Queries Between Multiple Tables
Data was imported using PostgreSQL from multiple CSV files. Relationship between tables was designed in order to identify retiring employees for a company and identifying opportunities for mentorships and recruiting.
Tables With Established Relationships
Multiple visualization were created in order to meet Human Resources need for information.
-- Creating tables for PH-EmployeeDB
CREATE TABLE departments (
dept_no VARCHAR(4) NOT NULL,
dept_name VARCHAR(40) NOT NULL,
PRIMARY KEY (dept_no),
UNIQUE (dept_name)
);
CREATE TABLE employees (
emp_no INT NOT NULL,
birth_date DATE NOT NULL,
first_name VARCHAR NOT NULL,
last_name VARCHAR NOT NULL,
gender VARCHAR NOT NULL,
hire_date DATE NOT NULL,
PRIMARY KEY (emp_no)
);
CREATE TABLE dept_manager (
dept_no VARCHAR(4) NOT NULL,
emp_no INT NOT NULL,
from_date DATE NOT NULL,
to_date DATE NOT NULL,
FOREIGN KEY (emp_no) REFERENCES employees (emp_no),
FOREIGN KEY (dept_no) REFERENCES departments (dept_no),
PRIMARY KEY (emp_no, dept_no)
);
CREATE TABLE salaries (
emp_no INT NOT NULL,
salary INT NOT NULL,
from_date DATE NOT NULL,
to_date DATE NOT NULL,
FOREIGN KEY (emp_no) REFERENCES employees (emp_no),
PRIMARY KEY (emp_no)
);
CREATE TABLE titles (
emp_no INT NOT NULL,
title VARCHAR NOT NULL,
from_date DATE NOT NULL,
to_date DATE NOT NULL
-- PRIMARY KEY (emp_no)
);
CREATE TABLE dept_emp (
emp_no INT NOT NULL,
dept_no VARCHAR NOT NULL,
from_date DATE NOT NULL,
to_date DATE NOT NULL
-- PRIMARY KEY (emp_no)
);
SELECT * FROM dept_emp
DROP TABLE dept_emp
SELECT first_name, last_name
FROM employees
WHERE birth_date BETWEEN '1952-01-01' AND '1955-12-31';
SELECT first_name, last_name
FROM employees
WHERE birth_date BETWEEN '1952-01-01' AND '1952-12-31';
-- Retirement eligibility
SELECT first_name, last_name
FROM employees
WHERE (birth_date BETWEEN '1952-01-01' AND '1955-12-31')
AND (hire_date BETWEEN '1985-01-01' AND '1988-12-31');
-- Number of employees retiring
SELECT COUNT(first_name)
FROM employees
WHERE (birth_date BETWEEN '1952-01-01' AND '1955-12-31')
AND (hire_date BETWEEN '1985-01-01' AND '1988-12-31');
SELECT first_name, last_name
INTO retirement_info
FROM employees
WHERE (birth_date BETWEEN '1952-01-01' AND '1955-12-31')
AND (hire_date BETWEEN '1985-01-01' AND '1988-12-31');
SELECT * FROM retirement_info;
-- Call tables for visualization
SELECT * FROM employees
SELECT * FROM titles
-- Create retiring_by_title table by merging employees and titles tables
SELECT e.emp_no,
e.first_name,
e.last_name,
t.title,
t.from_date,
t.to_date
INTO retirement_titles
FROM employees AS e
LEFT JOIN titles AS t
ON e.emp_no = t.emp_no
WHERE e.birth_date BETWEEN '1952-01-01' AND '1955-12-31'
ORDER BY e.emp_no ASC
-- Verify table
SELECT * FROM retirement_titles
-- Create unique_titles table by using previous table, drop from_date and to_date,
-- filter by the last title of employees
SELECT DISTINCT ON (r.emp_no) r.emp_no,
r.first_name,
r.last_name,
r.title
INTO unique_titles
FROM retirement_titles AS r
ORDER BY r.emp_no ASC, r.to_date DESC;
-- Verify table
SELECT * FROM unique_titles

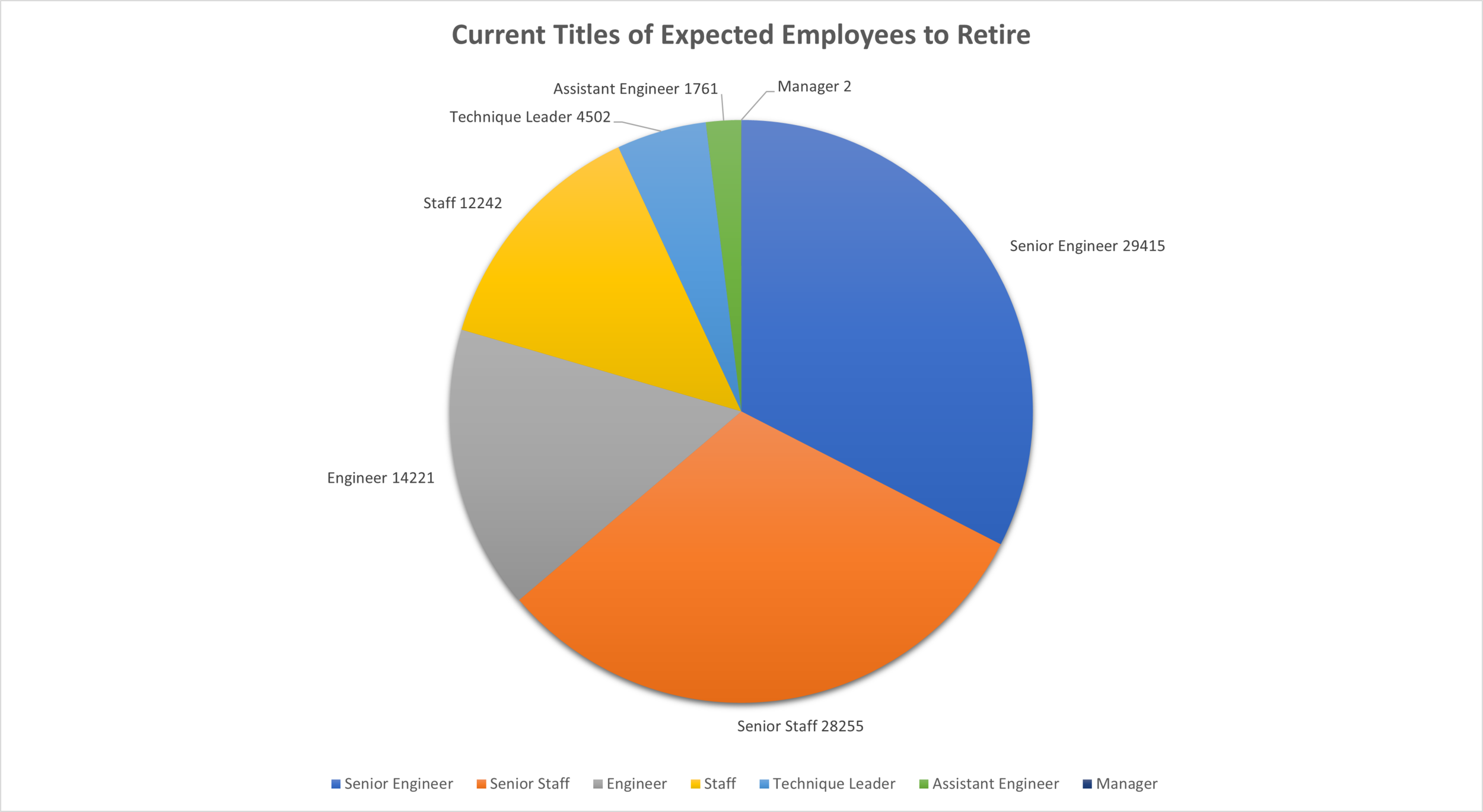

-- Export unique_titles as csv and retrieve number of employees by most recent job title who are about to retire
-- Create a retiring_titles table
SELECT COUNT(u.title), u.title
INTO retiring_titles
FROM unique_titles AS u
GROUP BY u.title
ORDER BY COUNT(u.title) DESC
-- Verify table
SELECT * FROM retiring_titles
-- Call tables for visualization
SELECT * FROM employees
SELECT * FROM dept_emp
SELECT * FROM titles
-- Create mentorship_eligibilty table with employees who are eligible to participate in a mentorship program.
SELECT DISTINCT ON(e.emp_no) e.emp_no,
e.first_name,
e.last_name,
e.birth_date,
d.from_date,
d.to_date,
t.title
FROM employees AS e
JOIN dept_emp AS d
ON e.emp_no = d.emp_no
JOIN titles AS t
ON e.emp_no = t.emp_no
WHERE (d.to_date = ('9999-01-01'))
AND (e.birth_date BETWEEN '1965-01-01' AND '1965-12-31')
ORDER BY e.emp_no ASC, t.to_date DESC
-- Verify table
SELECT * FROM mentorship_eligibilty
